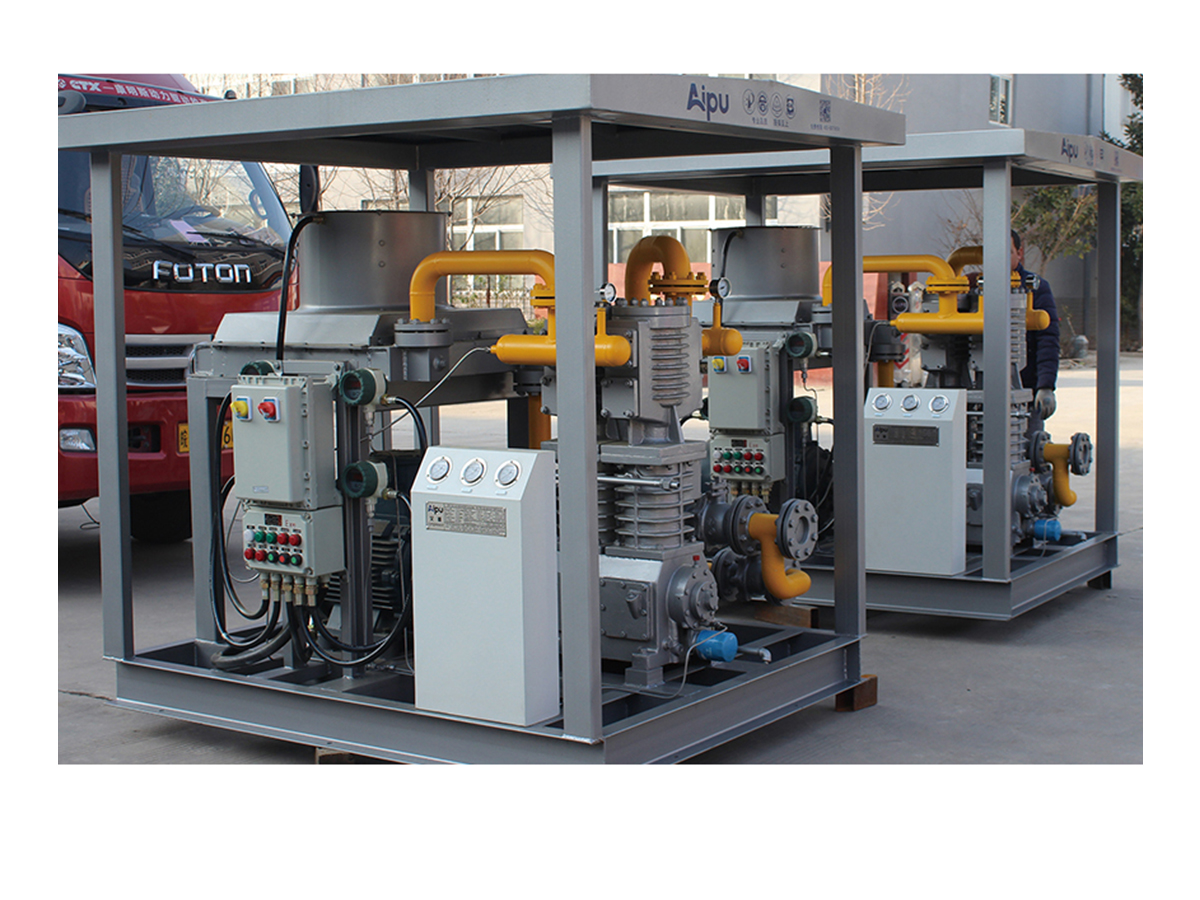

BOG recovered into pipe network
2024/8/12
■ Applicable L-CNG filling station, LNG storage station, LNG peak shaving station, LNG gasification station and LNG liquefaction plant.
LNG storage tank overpressure release BOG recovery.
Recovery of residual pressure BOG of the LNG tanker after unloading.
Safe and Effective Economical O&M
|
Equipment Parameters
|
Medium
|
Treatment capacity Nm3/h
|
Inlet pressure
|
Exhaust pressure （Mpa)
|
Motor power KW
|
Overall dimensions （mm)
|
|
ZW-4.0/(1-4)-5 |
BOG |
800 |
0.1-0.4 |
0.5 |
37 |
2000*1600*2200 |
|
ZW-3.3/(1.5-4)-5 |
BOG |
650 |
0.15-0.4 |
0.5 |
30 |
2000*1600*2200 |
|
ZW-4.4/(1.5-4)-5 |
BOG |
850 |
0.15-0.4 |
0.5 |
37 |
2000*1600*2200 |
|
ZW-3.5/(0.2-3)-3.8 |
BOG |
500 |
0.02-0.3 |
0.4 |
22 |
2000*1600*2200 |
|
ZW-3.9/(0.5-4)-4.5 |
BOG |
650 |
0.05-0.4 |
0.5 |
30 |
2000*1600*2200 |
|
ZW-3.0/(1.5-4)-4.5 |
BOG |
580 |
0.15-0.4 |
0.5 |
22 |
2000*1600*2200 |
|
VW-21.5/0.2-4.5 |
BOG |
1330 |
0.0 |
0.5 |
160 |
3500*2700*3000 |
|
VW-6.15/(0.2-4)-53 |
BOG |
950 |
0.02-4 |
5.3 |
250 |
3500*2700*3000 |
|
VW-6.5/(0.05-0.15)-60 |
BOG |
370 |
0.005-0.015 |
6.0 |
110 |
3500*3000*3000 |
|
DW-7.8/1.5-4.5 |
BOG |
1000 |
0.2 |
0.5 |
55 |
3500*3000*3000 |
|
DW-32/0.05-18 |
BOG |
1700 |
0.0 |
1.8 |
315 |
3500*3000*3000 |
|
DW-5.7/（0.1-0.15）-18 |
BOG |
330 |
0.01-0.015 |
1.8 |
75 |
3500*3000*3000 |
|
|
