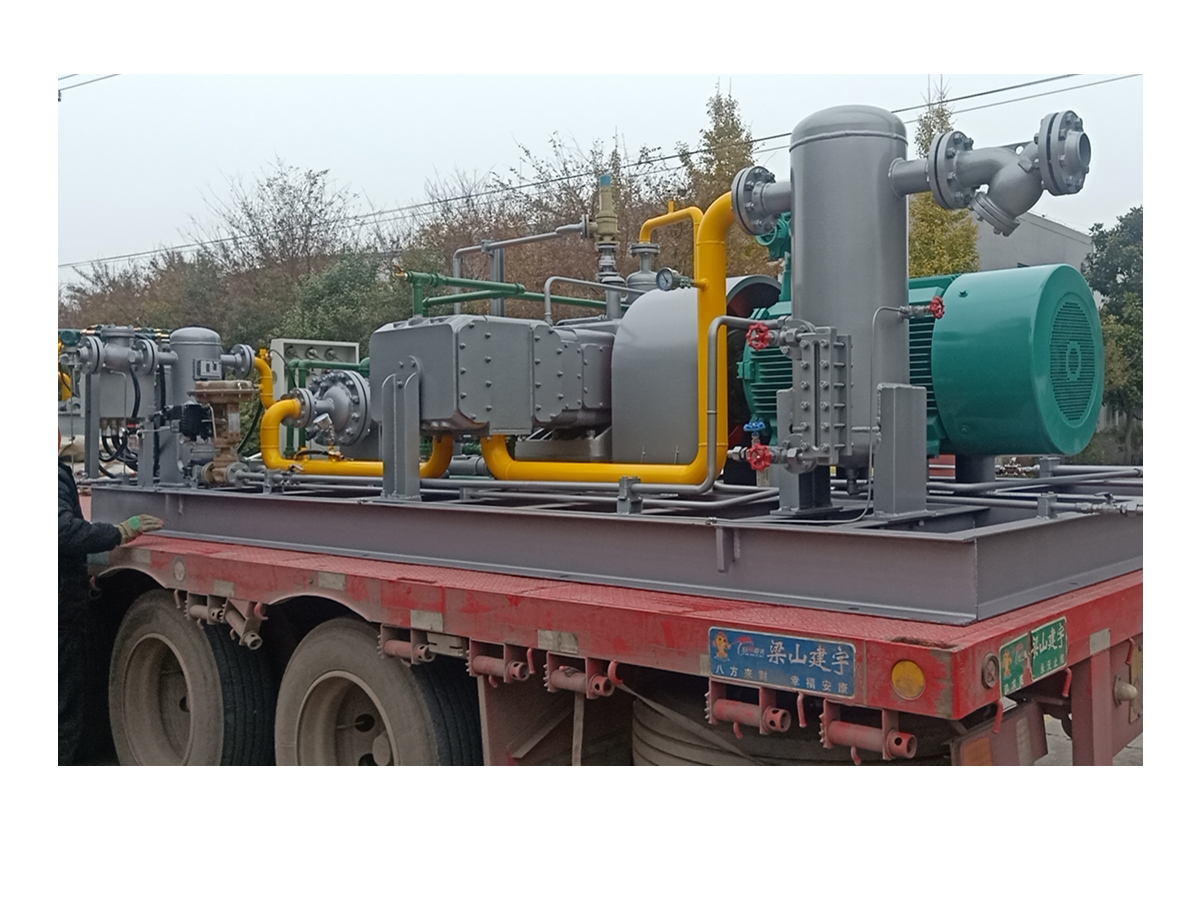

Chemical vent gas recovery compressor
2024/8/12
■ Applicable The chemical tail gas series compressor is used for pressurization, transportation and recovery of various chemical tail gases in the petrochemical process flow.
■ Features Process-specific discipline design
Safe, reliable and stable operation
|
Equipment Parameters
|
Medium
|
Treatment capacity
Nm3/h
|
Inlet pressure
（Mpa)
|
Exhaust pressure
（Mpa)
|
Motor power
KW
|
Overall dimensions
（mm)
|
|
ZW-0.88/0-10 |
Ethylene
|
45 |
Atmospheric pressure
|
1.0 |
7.5 |
1600*1600*1700 |
|
ZW-1.6／(0.1-1)-17 |
Ammonia |
85 |
0.01-0.1 |
1.7 |
30 |
1600*1600*1700 |
|
DW-1.3/3-55 |
Mixed gas
|
270 |
0.3 |
5.5 |
55 |
3500*2700*3000 |
|
DW-0.6/(3-4)-36 |
Flash gas
|
140 |
0.3-0.4 |
3.6 |
22 |
3500*2700*3000 |
|
DW-2.0/0.2-3 |
Nitrogen
|
150 |
0.0 |
0.3 |
18.5 |
3500*2700*3000 |
